SE 845

<Please let me know if my images take too long to load, I'm not good at this HTML stuff.>

UPDATE:  8/1/04

Well, I got things settled in and listened for about an hour today.  Again, no smoke :-) and some good sounds.
I'm liking what I hear so far.

I connected the primary of the 300B power supply section to the switching system, not the variac.
I kept the primary of the plate transformer connected to the variac to control the output voltage.  I had been getting about
1240VDC on the plates of the 845s and that's pressing things, in my opinion.  My bias supply was unable to produce
enough V- to get the tubes under 60mA.  With 1KV, I have control of the tubes from zero current to way too much.
I plan to operate them at 60mA.

Here's a shot of the 866A MV tubes at work.



Behind the 866As you can see the 6D22S damper diode that I use for slow-start purposes.  They take about
30 seconds to warm up and conduct fully.  I have them in the ground line, so they don't see much DC.

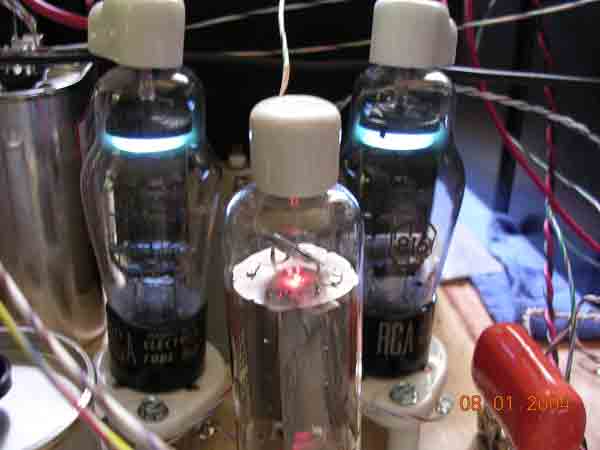

Here's a shot of the 816 rectifiers I'm using for the 300B driver section.  I need to change some resistors
in this power supply to get a little more DC.  The Kenyon chokes have a higher resistance than I
had thought initially.

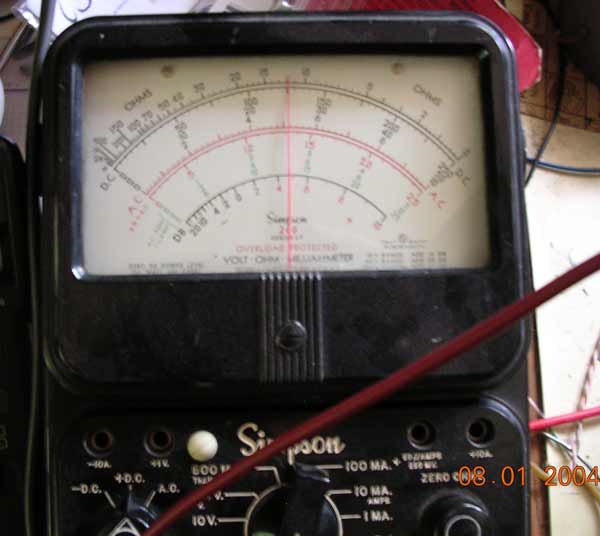

Here's my trusty Simpson meter showing half of the B+ at 510V.  I have a 100K 50W bleeder resistor
(made from two 50K in series) across the final caps, so I measure at the junction.


Here's another shot of an 845 at work.



I'll be adding more to this site as the project progresses.  If you any questions or comments about this amp, they're
certainly welcome.  Email me at rkoonce@dsityler.com
